Electronic Films DSB Series 2000mm Roll Slitting Machine

Product Details

Place of Origin: China

Brand Name: DST

Certification: SGS

Model Number: DSB

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Based on Specification

Packaging Details: wooden case

Delivery Time: around 4 months

Payment Terms: T/T

Supply Ability: Five sets in 4 months

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  100 Micron Roll Slitting Machine, 2000mm Roll Slitting Machine, roll slitter rewinder


Substrate:	PP/PE/EVA	Substrate Width:	2000-5000mm
Substrate Thickness:	5.0um-100um	Speed:	Max. 300m/min
Warranty:	1 Year	Color:	OEM
Function:	Auto Edge Strightening/slight-moving	Feature:	Digital PLC Control
Brand:	DST

Substrate:	PP/PE/EVA
Substrate Width:	2000-5000mm
Substrate Thickness:	5.0um-100um
Speed:	Max. 300m/min
Warranty:	1 Year
Color:	OEM
Function:	Auto Edge Strightening/slight-moving
Feature:	Digital PLC Control
Brand:	DST

Description

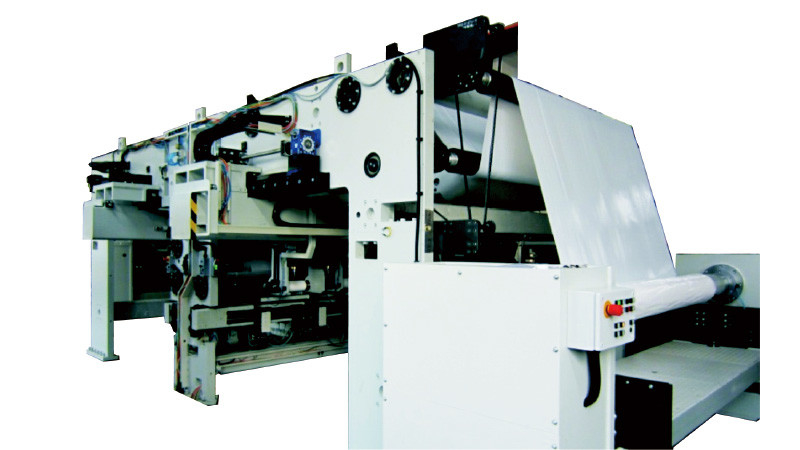

Electronic Films DSB Series 2000mm Roll Slitting Machine

Product Description

DSB series slitting-reiwinder is used for electronic films,EVA films,and optical films etc.

Technical Data

Substrates	OPP. 2.0mic – 15mic ; PET. 2.7mic –15mic
Substrate width	max.1050mm
Slitting widths	min.5.0 mm
Unwind diameter	max. 650 mm
Rewind diameter	max. 350 mm
Working speed	max. 300 m/min
Mechanical Speed	max. 500m/min

Electronic Films DSB Series 2000mm Roll Slitting Machine 0

Features

1. Horizontally moving, front placed rewind arms

2. Horizontally moving slitting cartridge

3. Controlled individual trim winder

4. Electrostatic Eliminator

5. Margin tracking system

6. Pre-clearing system

7. Operator-oriented graphic touch panel

8. Digital winding technique with AC servo drives

9. Closed-loop controlled unwind

10. Fault diagnostic function

11. Wave cutting system

Packaging & Delivery

1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Electronic Films DSB Series 2000mm Roll Slitting Machine 1

Competitive Advantages

1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.

Our Factory

Electronic Films DSB Series 2000mm Roll Slitting Machine 2

Electronic Films DSB Series 2000mm Roll Slitting Machine 3

FAQ

Q:Where is your factory located? Can I visit it before I place an order?

A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.

Q: How about the warranty and after-sale service?

A: We provide 12 months warranty and lifetime technic suport for all machinery. We have professional after-sale technical team, we can solve problems in time.
