15 Micron Extraction Winder
, 200v Extraction Winder
, DSE4500 automatic rewinder

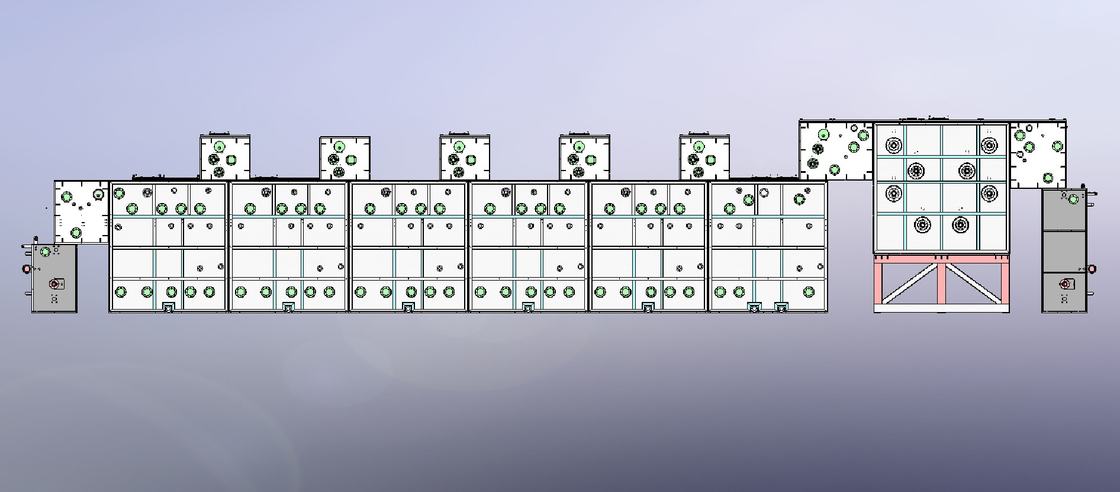

Sealing DSE4500 200V 3 Phase 15 Micron Extraction Winder
DSE4500 Extraction Winder 123m Extraction Length with excellent sealing performance
Extraction tank is the earliest and still widely used extraction equipment with mature technology. It is a kind of step-by-step contact extraction equipment which realizes two-phase separation by gravity. It is mainly composed of mixing chamber and clarifying chamber. The raw material liquid and extractant first enter the mixing chamber through their respective feed ports, and then mix and transfer mass through agitator, and then enter the clarification chamber through overflow baffle to realize natural separation by gravity. At last, they enter different outlets to complete the extraction process. In the actual production, the extraction tank is generally multi-stage series, and is equipped with stripping section, washing section, regeneration section and other sections.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Technical Data
| Substrate |
wet-process sepatate film |
| Substrate Width |
3200mm－4200mm |
| Substrate thickness |
inlet15～45μm ,outlet 10～30μm |
| Electricity |
3 phase * 200 volt *60Hz |
| Speed |
10-75m/min |
| Extraction liquid |
dichloromethane |
| Solvent volume |
Six tanks are about 150 m3 in total |
| Extraction length |
123m |
| Total power |
300kw/h |
| Power supply |
AC380V, 50Hz,three phase current |
Features
1. Servo-Driven Upper/Lower Rollers
2. Excellent Sealing Performance
3. High Extraction Efficiency
4. Accurate Drive Control
5. Accurate Temperature Control
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Our Factory
Dongheng(dswintec.com) located in HeFei city and SuZhou city, Dongsheng M&E Tech Co.,Ltd. is a well-known manufacturer of functional-film equipments. The company specializes in manufacturing vacuum coating machines, splitting machines, rewinding machines, bidirectional film-pulling machines, and other related equipments, for fields of electronic films, lithium battery separators, optical films, packing films, cooper/aluminum foil and others.
Dongsheng is also equipped with well-qualified R&D personnel,and experienced mechanical and electrical application engineers. Oriented to customers requirements and satisfaction, Dongsheng is dedicated to provide integrated solutions for designing & manufacturing,upgrading & reconstruction for used equipments, process designing, equipment installation, technical consultation,and personnel training, from single devices to whole production lines.
With excellent products and efficient services, DONGSHENG is obtaining more and more satisfaction and support from users at home and abroad.
FAQ
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchase
