Highlight:
1500mm Vacuum Metallizer Machine
, 8 Micron Vacuum Metallizer Machine
, 1000mm film coating machine

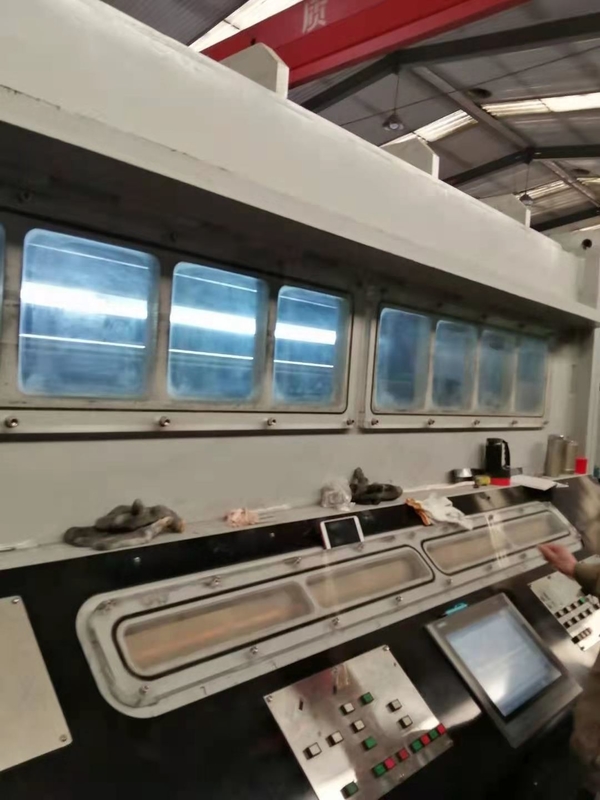

Roll To Roll PET 8 Micron 1500mm Vacuum Metallizer Machine
Roll to Roll Vacuum Metallizer/Industrial Vacuum Packaging Machine for Coating PET/OPP
Product Description
MPA series of high vacuum winding coating machine, set high efficiency, stability, high cost performance in one, suitable for cigarette package direct plating paper, cigarette package transfer paper, laser anti-counterfeiting, high-grade hot stamping materials, high-grade color printing packaging aluminum plating, fully compatible media coating.
The electric control system is controlled by Siemens industrial network bus, and the winding process software controls the whole winding process. Each system is centralized controlled by each substation, and the monitoring equipment can be connected through Internet.
Technical Data
| Substrate |
PET,OPP,CPP,Paper,etc. |
| Substrate Width |
1000mm-4000mm |
| Film thickness |
8μm-50μm |
| Roll diameter |
max. 1500 mm |
| Speed |
max,1000m/min |
|
PLC system
|
Siemens S7-400 series |
| Driving system |
Siemens |
| Size |
14m×5.5m×2.8m
|
| Heating method |
electric / oil |
Features
1.Digital PLC Control
2.Single/Double-side Coating
3.Plasma Pre-treatment
4. Pattern Printing
5. Coating Thickness Monitor
6. Accurate Tension Control
Application
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Our Factory
Our customers
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
