Highlight:
400N Web Coating Machine
, 600mm Web Coating Machine
, 4um pp coating machine

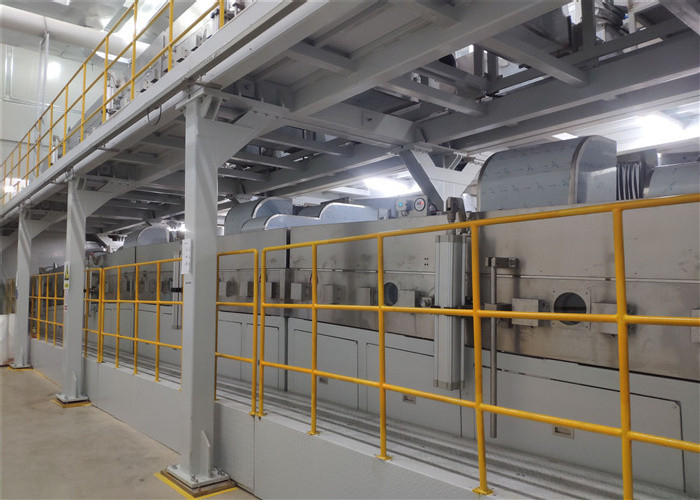

Separate Films 600mm 4 Micron 400N Web Coating Machine
PET PP Film Coating Machine High Performance Web Coating Machine For Separate Films
Product Description
The equipment mainly includes the following basic functions:
—— Unwinding and rewinding double position automatic coil changing
—— Error correction of unwinding and rewinding platform
—— Process correction CPC before coating and after oven
—— The flattening roller is arranged after leaving the oven
—— The coating tension is controlled by the closed loop of pinch roll and floating roll
—— Automatic intermittent winding mode
—— Touch man machine operating system with large screen
—— Unwinding, winding and traction are driven by numerical control AC servo
—— Reverse coating method of micro gravure
—— Automatic control of unwinding tension
—— Automatic control of winding tension
—— Static electricity removing function of winding and unwinding tape
—— The oven roller adopts active driving mode
Technical Data
| Substrate |
PE,etc. |
| Substrate Width |
500mm-1400mm |
| Coating thickness |
0.5-4μm |
| Tension range |
30-400N |
| Coating amount |
1-4μm |
| Speed |
max. 150m/min |
| Power supply |
AC380V 50Hz + PE |
| Dimension |
31700*6500*6500mm |
| Unwind diameter |
max. Φ600mm |
| Rewind diameter |
max. Φ650mm |
| Color |
OEM/RAL7035 |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Our Factory
Our customers
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
