Highlight:
550m/min duplex slitter rewinder
, Horizontally moving duplex slitter rewinder
, SGS duplex slitter rewinder machine

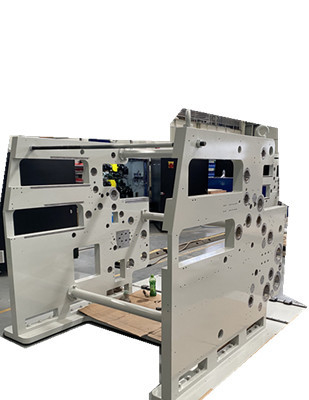

550m/min duplex slitter rewinder Horizontally moving
500mm film slitting machine 60hz automatic slitting machine 5500mm duplex slitter rewinder
Product Description
Equipped with Auto Tension Control System for unwinding tension. D With meter counter. Got to the setup data, the machine stops and alarms.
It adopts Synchronic Belt to avoid the over lap problem. It adopts frequency inverter for main inverter motor driving, the speed can be displayed on the operation panel. Frequency inverter motor: 2.2Kw. All transmission rollers have been dynamic/static balance treated. Equipped with emergency switch. IAll the electricappliances has been gained the CE certificate.
Features
1. Horizontally moving, front placed rewind arms
2. Horizontally moving slitting cartridge
3. Controlled individual trim winder
4. Electrostatic Eliminator
5. Margin tracking system
6. Pre-clearing system
7. Operator-oriented graphic touch panel
8. Digital winding technique with AC servo drives
9. Closed-loop controlled unwind
10. Fault diagnostic function
11. Wave cutting system(Optional)
Technical Data
| Substrate |
OPP 2 - 12um |
| Substrate Width |
500-920mm |
| Slitting width |
min 4.5 mm |
| Electricity |
3 phase * 200 volt *60Hz |
| Unwinding diameter |
max. 650mm |
| Winding dia. |
max. 350mm |
| Speed |
max.500m/min |
| PLC |
Beckhoff Germany |
| Operation screen |
Colorful touch screen , HMI |
| Power supply |
AC380V, 50Hz,three phase current |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Our Factory
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
