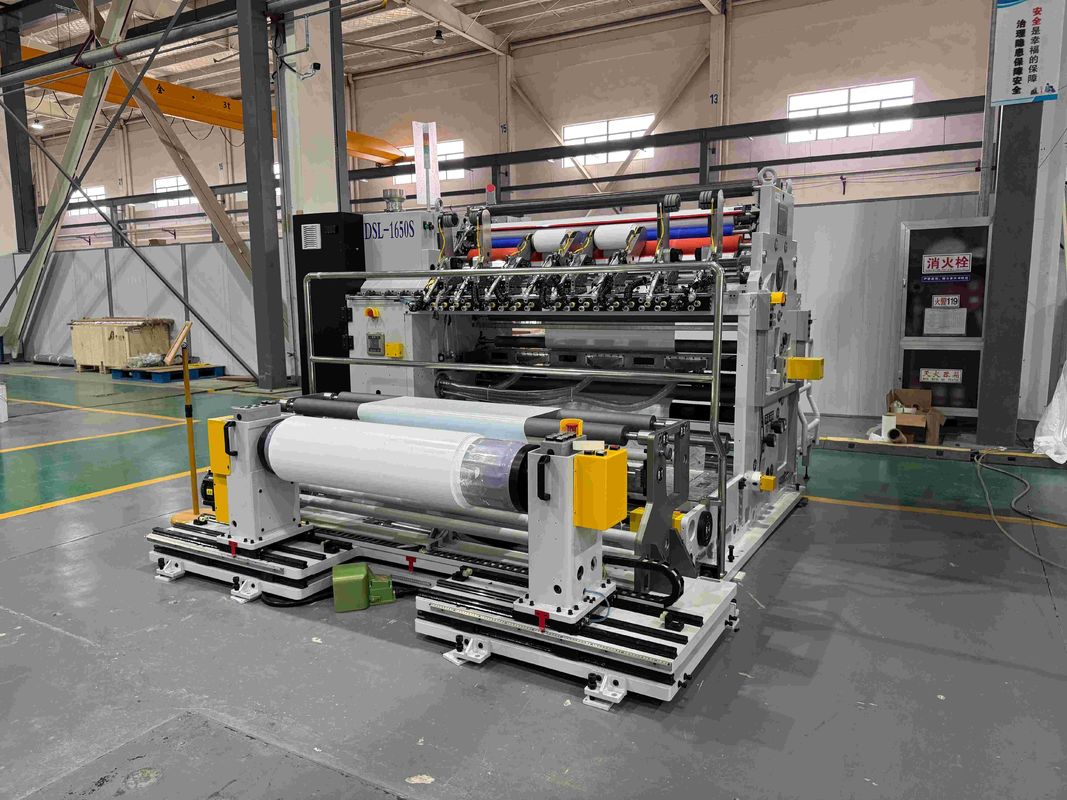

DSLS Series Slitter Rewinder Machine​

The equipment is mainly used for the production of lithium battery separator slitting. The main task is to divide the original wide rolled lithium battery separator into lithium battery separators of different sizes and widths through unwinding, transmission mechanism, and slitting mechanism, and complete the winding process.

• Function

-Horizontal movement and front-end winding mode

-A large touch screen human-machine operating system

-Unwinding and rewinding CNC AC servo drive

-Horizontal movable electric control knife holder slitting mode straight knife standard configuration

-Unwinding automatic deviation correction

-Rewinding anti-static function

          Process Flow Diagram

Unwinding → Correction Unit → Transmission → Flattening → Circular Blade Slitting → Transmission → Film Separation → Upper & Lower Rewinding
　　　　　　　　　　　　　　 ↳ Trim Waste

        Equipment Schematic Diagram

• Electricity

1) 3 phase x 400 volt x 50 Hz

2)  Ambient temperature: 15~45℃

3) Air humidity: 40%~90%

4) Voltage variation: <±5%

General Specifications

Substrate: Battery separator, thickness 5 µm – 25 µm

Substrate Width: Minimum 300 mm, maximum 1350 mm

Winding System: Dual-arm independent rewinding method

Slitting System: Rotary blade slitting

Slitting Width:

Single-arm rewinding: 55 mm – 200 mm

Standard dual-arm synchronized rewinding: 300 mm – 650 mm

Unwinding Diameter: Maximum 500 mm

Rewinding Diameter: Maximum 400 mm

Mechanical Speed: Up to 250 m/min

Operating Speed*: Up to 150 m/min

*Note: The actual operating speed depends on the substrate characteristics, thickness uniformity, slitting width, and operator skill level.

Machine Dimensions (Approx.): 2500 mm (L) x 2800 mm (W) x 1500 mm (H) (subject to final layout drawing)

• Compressed air

1) Clean compressed air free from moisture, dirt and oil

2) Pressure (entering the device interface):  Approx. 5-6 bar gauge

3) Compressed air condensation point: 5℃

• Equipment Positioning

After the equipment is adjusted to a level, fix it with a pressure plate and expansion bolts.

Equipment Purpose and Advantages

The DSL-1500S High-Performance CNC Slitting Machine is specifically designed for slitting flexible materials such as lithium-ion battery separators.

The equipment includes the following key features:

Independent servo-controlled rewinding system

Large touchscreen human-machine interface (HMI)

AC servo drives for both unwinding and rewinding

Horizontally movable knife holder with rotary blade slitting method

Automatic unwinding tension control

Automatic rewinding tension and taper control

Static elimination function at the rewinding section

Reserved installation space for defect inspection system

Dust extraction system at the slitting shaft (optional)

Adhesive dust removal system at both rewinding sides (optional)

• Technical Data

Competitive Advantages

1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
