White Max. 500mm Substrate Width Slitting Rewinder Machine

Name: White Max. 500mm Substrate Width Slitting Rewinder Machine
Brand: Hefei Dongsheng Machinery Technology Co., Ltd
SKU: DSL-1500
Price: 506,900.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: DST

Certification: SGS

Model Number: DSL-1500

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Based on Specification

Packaging Details: wooden case

Delivery Time: around 4 months

Payment Terms: T/T

Supply Ability: 7 sets in 4 months

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              White Max Slitting Rewinder Machine, 500mm Substrate Width Slitting Rewinder Machine, Slitting Rewinder Machine


Product Name:	Slitting Rewinder Machine	Min. Substrate Width:	500mm
Min. Substrate Thickness:	7μm	Working Speed:	Max. 150m / Min
Dimension:	2650x2200x1550mm	Color:	White Or Customized
Power Supply:	380V 50Hz 3Phase	Min. Unwinding Core:	500mm Length

Product Name:	Slitting Rewinder Machine
Min. Substrate Width:	500mm
Min. Substrate Thickness:	7μm
Working Speed:	Max. 150m / Min
Dimension:	2650x2200x1550mm
Color:	White Or Customized
Power Supply:	380V 50Hz 3Phase
Min. Unwinding Core:	500mm Length

Description

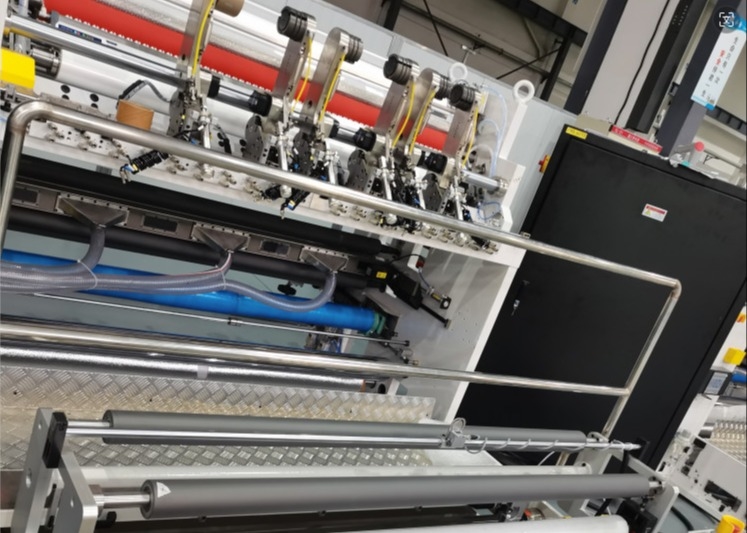

White Max. 500mm Substrate Width Slitting Rewinder Machine

DSL Series Slitting Rewinder Machine

DSL-1500 high-performance CNC Slitting Rewinder Machine is professionally used for materials such as lithium-ion battery separators.

Function

-Horizontal movement and front-end winding mode

-A large touch screen human-machine operating system

-Unwinding and rewinding CNC AC servo drive

-Horizontal movable electric control knife holder slitting mode straight knife standard configuration, circular knife option.

-Unwinding automatic deviation correction

-Rewinding anti-static function

Electricity

1) 3 phase x 380 volt x 50 Hz

2) Connected power: approx. 20 kVA

3) Average consumption: approx. 15 kW

4) Voltage variation: <±5%

Technical Data

Substrate Thickness	7-50μm
Substrate Width	500-150mm
Slitting width	Min. 40mm
Electricity	3 phase * 380 volt *50Hz
Unwind diameter	max. 500mm
Rewind diameter	max. 300mm
Speed	max.150m/min
PLC	Germany Beckhoff
Operation screen	Colorful touch screen
Power supply	AC380V, 50Hz, 3P

White Max. 500mm Substrate Width Slitting Rewinder Machine

OUR FACTORY

White Max. 500mm Substrate Width Slitting Rewinder Machine

OUR WORKSHOP

White Max. 500mm Substrate Width Slitting Rewinder Machine

OUR CUSTOMER

Multi-Function Magnetron Sputtering Metallizer Used For Coating PET Film 6

FAQ

Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.

Q2: Where is your factory located? Can I visit it before I place an order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.

Q3: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.

Q4: How about the warranty and after-sale service?
