Precision Hr Coil Slitting Machine Steel Coil Slitting Machine

DSC Series Slitter Rewinder Machine​

High performance independent servo controlled diaphragm slitting machine, model: DSL - 1650S.

• Function

The DSL-1500S high-performance CNC slitting machine is specialized in slitting flexible materials such as lithium-ion battery separators.
The equipment mainly includes the following basic functions:
——The winding independent servo control winding method.
——Large screen touch based human-machine operating system.
——Unwinding and rewinding with CNC AC servo drive.
——Horizontal moving knife holder, circular cutting method.
——Automatic control of unwinding tension.
——Automatic control of winding tension/taper.
——Roll up and remove static electricity function.
——Reserve installation positions for defect detection.
——Vacuum suction device at the cutter shaft (option).
——Double side dust sticking device at the winding point (option).

• _{^{Technical Specifications}}

• Electricity

1) 3 phase x 400 volt x 50 Hz

2) Ambient temperature: 15~45℃

3) Air humidity: 40%~90%

4) Voltage variation: <±5%

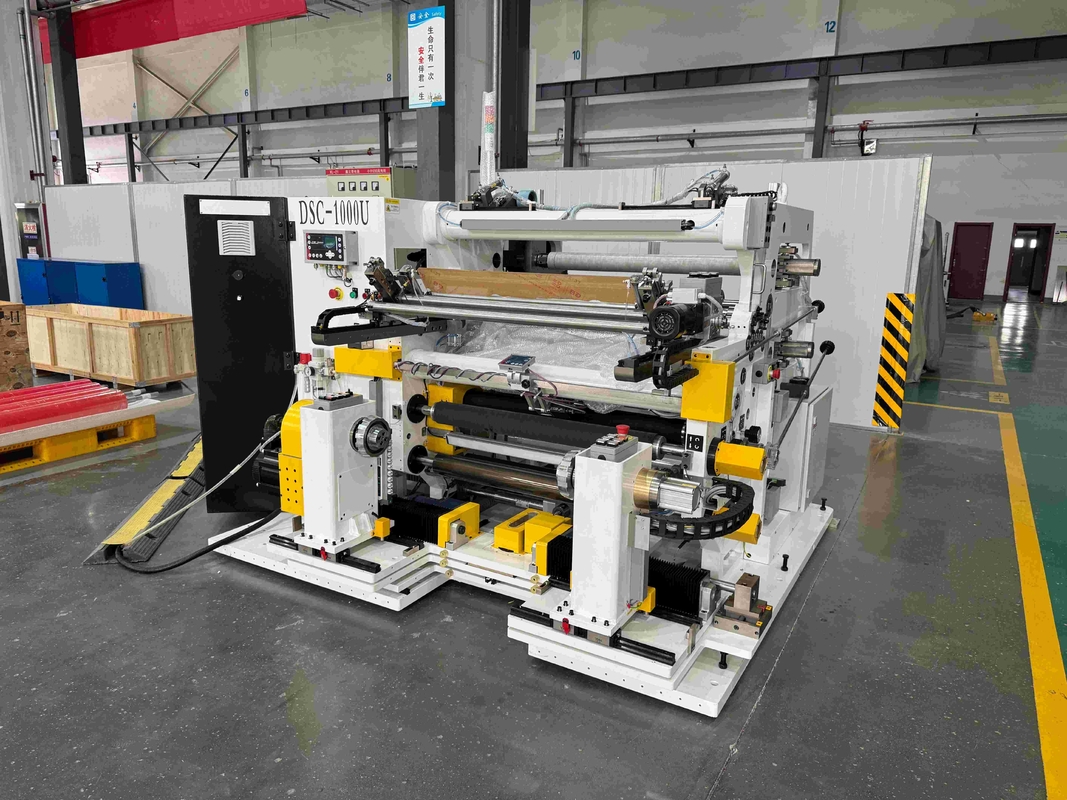

Main Configuration of DSC-1000U Slitting Machine

• Compressed air

1) Clean compressed air free from moisture, dirt and oil

2) Pressure (entering the device interface): Approx. 5-6 bar gauge

3) Compressed air condensation point: 5℃

• Equipment Positioning

After the equipment is adjusted to a level, fix it with a pressure plate and expansion bolts.

• Technical Data

technical data

Provide a set of printed text and a CD in Chinese format
(1) Safety operation guidelines (included in the operation manual)
(2) Technical indicators (included in this document)
(3) Operation Manual
(4) Mechanical assembly drawings
(5) Electrical wiring diagram
(6) Component manual (electrical and mechanical components)

Optional Configuration: DSC-1000U Coating Thickness Detection System

Competitive Advantages

1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.

Packaging & Delivery

1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

OUR FACTORY

OUR WORKSHOP

customs

FAQ

Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.

Q2: Where is your factory located? Can I visit it before I place an order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.

Q3: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.

Q4: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

Q5: Payment Terms
A: TT 30% in advance, 70% before shipment.

Q6: Machine installation
A: We could assign the technician to the place for the on-site installation if requested by the purchaser.
